ROCKY MOUNTAIN STUDIO SET DESIGN

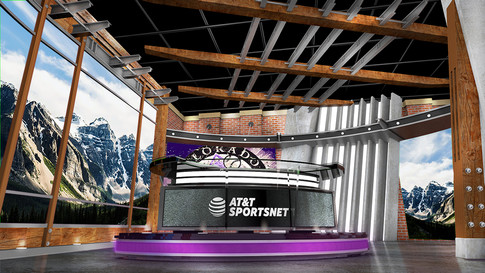

1) CURVED BALCONY with TIE RODS

Notes:
- Balcony black veneer has been changed to a dark gray. It doesn't stand out as much, yet retains the needed contrast.
- Aluminum awning balcony tie rod supports added to create a sense of weighted support.

- LED tape edge with diffusor channel added to accordion left edge. The lighting cast softens the 2 materials at seam.



2) CURVED BALCONY with TIE RODS & LARGE STEEL SUPPORTS

Notes:
- Balcony black veneer has been changed to a dark gray. It doesn't stand out as much, yet retains the needed contrast.
- Aluminum awning balcony tie rod supports added to create a sense of weight.
- 2 large Steel supports are placed in this version to create the sense of more weight structure for the awning balcony.

- LED tape edge with diffusor channel added to accordion left edge. The lighting cast softens the 2 materials at seam.

3) STEEL LINEAR BALCONY with TIE RODS & ACCENTED STEEL SUPPORTS

Notes:
- Balcony black veneer has been changed to a dark gray. It doesn't stand out as much, yet retains the needed contrast.
- Aluminum awning balcony tie rod supports added to create a sense of weight.
- Accent Steel supports are placed at each linear connection point to create the sense of more weight structure for the awning balcony.

- LED tape edge with diffusor channel added to accordion left edge. The lighting cast softens the 2 materials at seam.
